CHP-020TB

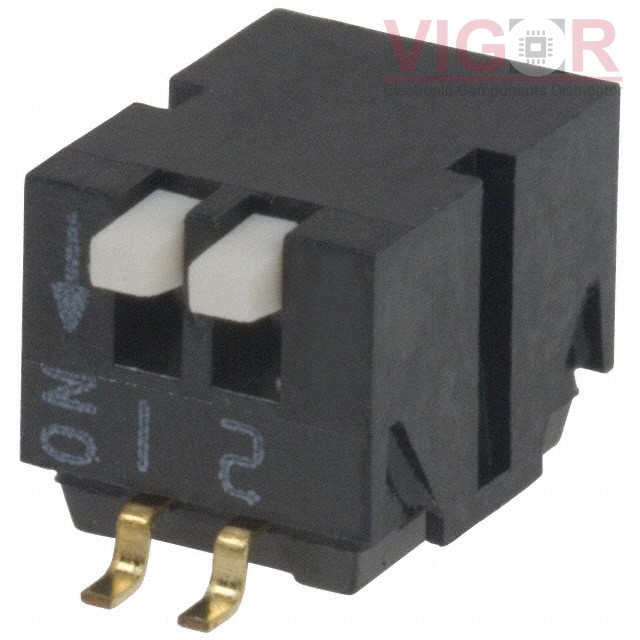

Product image
Product thumb
Part No :

CHP-020TB

Manufacturer
Nidec Copal Electronics
VIGOR # :

2703651

Description
SWITCH PIANO DIP SPST 100MA 6V
Catalog
DIP Switches
DataSheet
CHP-020TB PDF
Country of origin
-
Date code
-
ads
CHP-020TB Specifications
Type Description
Series:CHP
Package:Tape & Reel (TR)
Part Status:Active
Circuit:SPST
Number of Positions:2
Current Rating (Amps):100mA
Voltage Rating:6VDC
Actuator Type:Piano
Actuator Level:Raised
Contact Material:Copper Alloy
Contact Finish:Gold
Height Above Board:0.181" (4.60mm)
Mounting Type:Surface Mount, Right Angle
Termination Style:Gull Wing
Pitch:0.050" (1.27mm), Half
Washable:No
Features:-
Operating Temperature:-40°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Apr 22 - Apr 26 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.1453 $1.15
500 $1.0057 $502.83
1000 $0.8939 $893.92
5000 $0.7822 $3 910.90

Current price of CHP-020TB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
