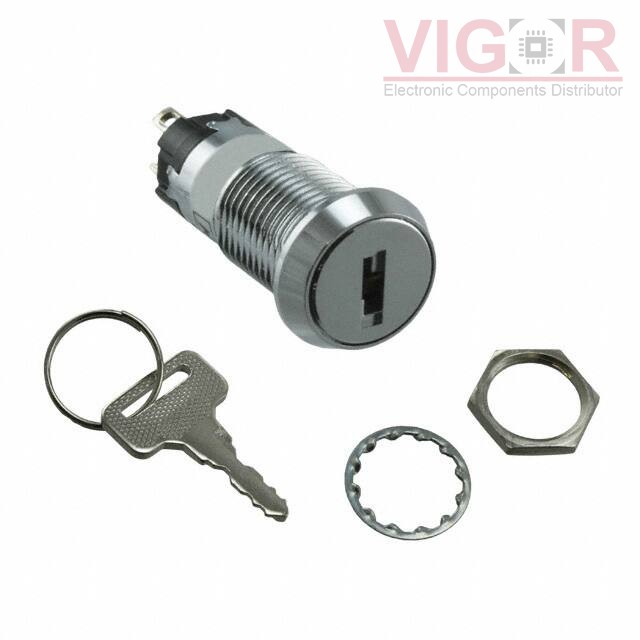

SK13EDW01-005

Part No :: SK13EDW01-005

Manufacturer: NKK Switches

VIGOR # :: 2708124

Description: SWITCH KEYLOCK 3POS SPDT 3A 125V

Catalog: Keylock Switches

DataSheet: SK13EDW01-005 PDF

Country of origin: -

Date code: -

SK13EDW01-005 Specifications

Type	Description
Series:	SK
Package:	Box
Part Status:	Active
Circuit:	SPDT
Number of Positions:	3
Switch Function:	On-Off-On
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	3A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flat Key
Key Removable Positions:	2 only
Angle of Throw:	45°
Contact Material:	Silver (Ag)
Contact Finish:	-
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 12.00mm Dia
Features:	Epoxy Sealed Terminals
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 46

Shipped from

HK warehouse

Expected Shipping Date

Jun 06 - Jun 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$25.2400~~	~~$25.24~~

Current price of SK13EDW01-005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
