MISM-7R-15-20

Part No :: MISM-7R-15-20

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2701607

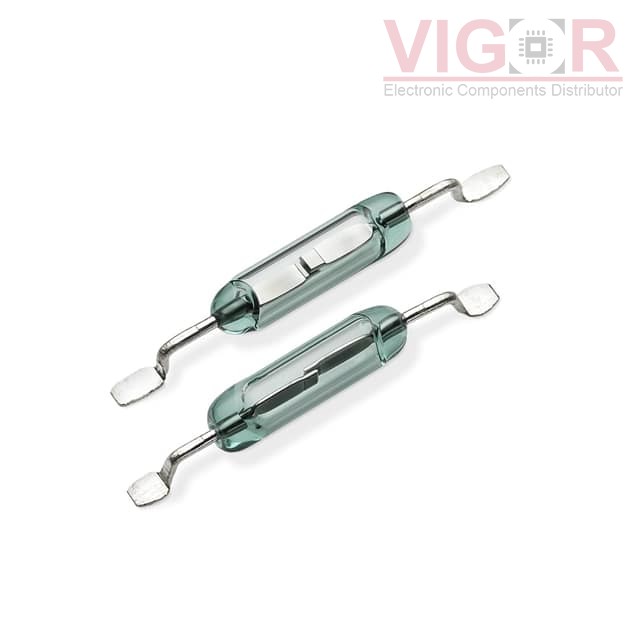

Description: SWITCH REED 7MM 15-20AT 10W SMD

Catalog: Magnetic, Reed Switches

DataSheet: MISM-7R-15-20 PDF

Country of origin: -

Date code: -

MISM-7R-15-20 Specifications

Type	Description
Series:	MISM-7
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Glass Body
Circuit:	SPST-NO
Operate Range:	15 ~ 20AT
Release Range:	-
Current - Switching:	180mA (AC), 250mA (DC)
Voltage - Switching AC:	120 V
Voltage - Switching DC:	170 V
Power - Rated:	10W
Operate Time:	450 µs
Release Time:	0.2 ms
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Length - Overall:	0.540" (13.72mm)
Size - Body:	0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board:	0.090" (2.28mm)
Operating Temperature:	-40°C ~ 125°C
Capacitance:	0.3 pF
Current - Carry:	500mA (DC)
