SW GP560/15-20 AT

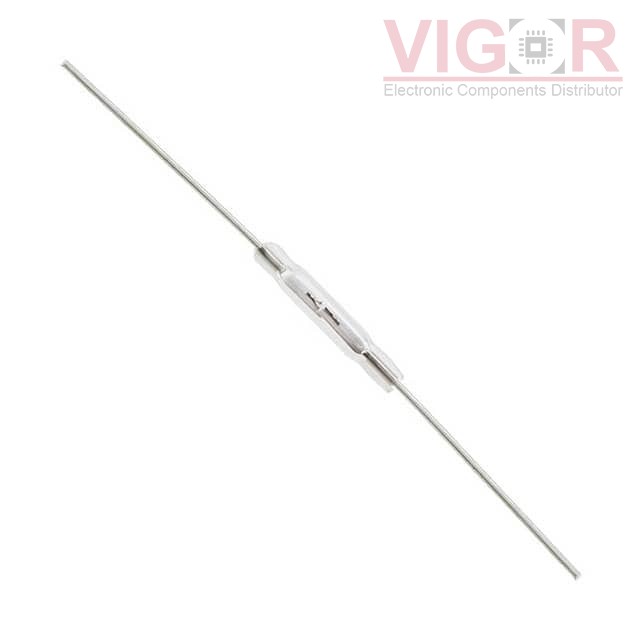

Image is for reference,
please contact us to get the real picture

Part No :: SW GP560/15-20 AT

Manufacturer: Standex Electronics

Description: SWITCH REED SPST-NO 1A 125V

Catalog: Magnetic, Reed Switches

Shipped from: HK warehouse

Expected Shipping Date: Nov 12 - Nov 16 2025

DataSheet: SW GP560/15-20 AT PDF

Availability: 7669 pieces

Unit Price: ~~$0.54000~~

Current price of SW GP560/15-20 AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SW GP560/15-20 AT Specifications

Type	Description
Series:	GP560
Package:	Bulk
Part Status:	Active
Type:	Glass Body
Circuit:	SPST-NO
Operate Range:	10 ~ 50AT
Release Range:	6 ~ 21AT
Current - Switching:	1A (AC/DC)
Voltage - Switching AC:	125 V
Voltage - Switching DC:	100 V
Power - Rated:	10VA
Operate Time:	0.6 ms
Release Time:	0.1 ms
Mounting Type:	Through Hole
Termination Style:	Axial
Length - Overall:	2.126" (54.00mm)
Size - Body:	0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Height Above Board:	-
Operating Temperature:	-40°C ~ 125°C
Capacitance:	0.2 pF
Current - Carry:	1.5A (AC/DC)

Please confirm the specifications of the products when ordering.
