MDSR-7-15-20

MDSR-7-15-20

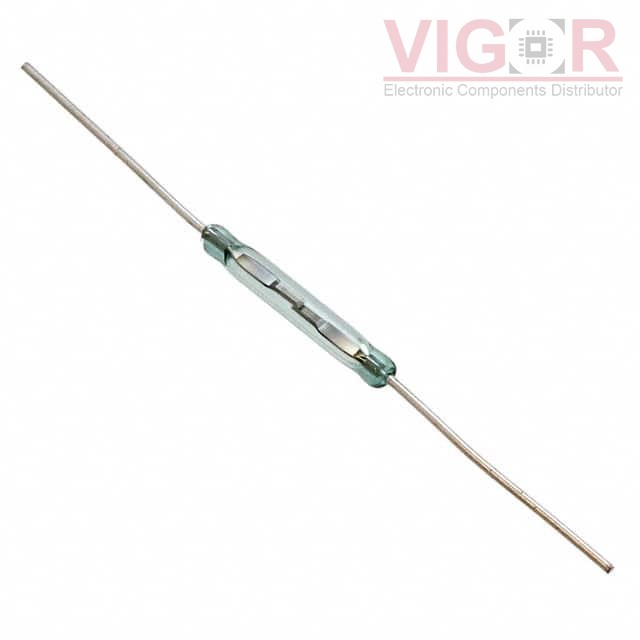

Image is for reference,
please contact us to get the real picture

Part No :

MDSR-7-15-20

Manufacturer
Wickmann / Littelfuse
Description
SWITCH REED SPST-NO 350MA 140V
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
MDSR-7-15-20 PDF
Availability
998 pieces
Unit Price
$1.39000

Current price of MDSR-7-15-20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MDSR-7-15-20 Specifications
Type Description
Series:MDSR-7
Package:Bulk
Part Status:Active
Type:Glass Body
Circuit:SPST-NO
Operate Range:15 ~ 20AT
Release Range:-
Current - Switching:350mA (AC), 500mA (DC)
Voltage - Switching AC:140 V
Voltage - Switching DC:200 V
Power - Rated:10W
Operate Time:0.6 ms
Release Time:0.2 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:1.590" (40.39mm)
Size - Body:0.071" Dia x 0.500" L (1.80mm x 12.70mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:0.3 pF
Current - Carry:800mA (DC)
