MDSM-DTR-20-25

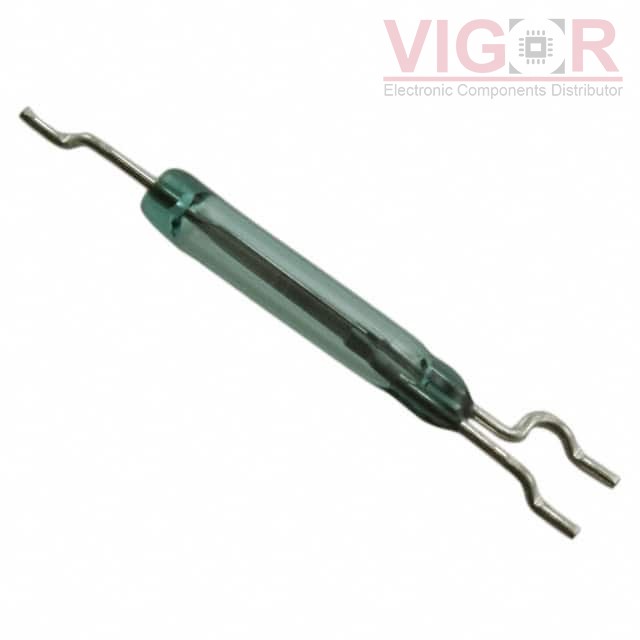

Image is for reference,
please contact us to get the real picture

Part No :: MDSM-DTR-20-25

Manufacturer: Wickmann / Littelfuse

Description: SWITCH REED SPDT 180MA 120V

Catalog: Magnetic, Reed Switches

DataSheet: MDSM-DTR-20-25 PDF

Availability: 0 pieces

Unit Price: ~~$2.79000~~

Current price of MDSM-DTR-20-25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MDSM-DTR-20-25 Specifications

Type	Description
Series:	MDSM-DT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Glass Body
Circuit:	SPDT
Operate Range:	20 ~ 25AT
Release Range:	-
Current - Switching:	180mA (AC), 250mA (DC)
Voltage - Switching AC:	120 V
Voltage - Switching DC:	175 V
Power - Rated:	5W
Operate Time:	0.7 ms
Release Time:	1 ms
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Length - Overall:	1.000" (25.40mm)
Size - Body:	0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Height Above Board:	0.101" (2.56mm)
Operating Temperature:	-40°C ~ 125°C
Capacitance:	1 pF
Current - Carry:	1.5A (DC)
