MISM-3V1R-8-12.5

MISM-3V1R-8-12.5

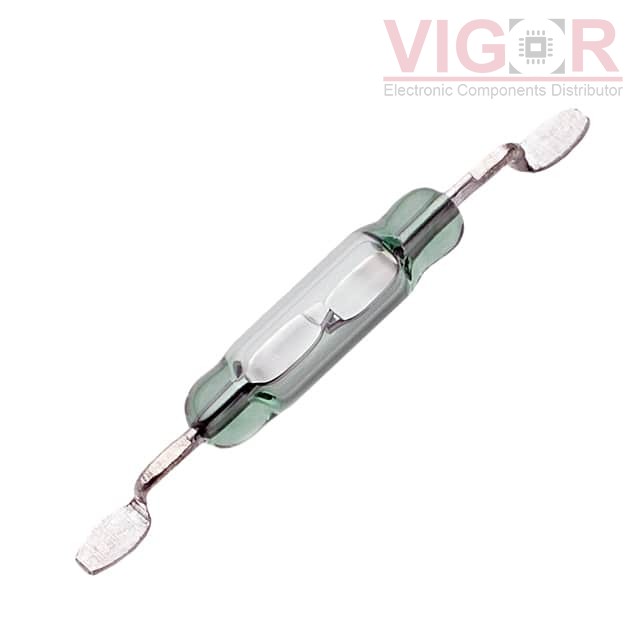

Image is for reference,
please contact us to get the real picture

Part No :

MISM-3V1R-8-12.5

Manufacturer
Wickmann / Littelfuse
Description
SWITCH REED SPST-NO 180MA 120V
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
MISM-3V1R-8-12.5 PDF
Availability
1348 pieces
Unit Price
$2.54000

Current price of MISM-3V1R-8-12.5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MISM-3V1R-8-12.5 Specifications
Type Description
Series:MISM-3V1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Glass Body
Circuit:SPST-NO
Operate Range:8 ~ 12AT
Release Range:-
Current - Switching:180mA (AC), 250mA (DC)
Voltage - Switching AC:120 V
Voltage - Switching DC:170 V
Power - Rated:10W
Operate Time:0.45 ms
Release Time:0.2 ms
Mounting Type:Surface Mount
Termination Style:Gull Wing
Length - Overall:0.540" (13.72mm)
Size - Body:0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board:0.090" (2.28mm)
Operating Temperature:-40°C ~ 125°C
Capacitance:0.3 pF
Current - Carry:500mA (DC)
