PMC-0701F1520

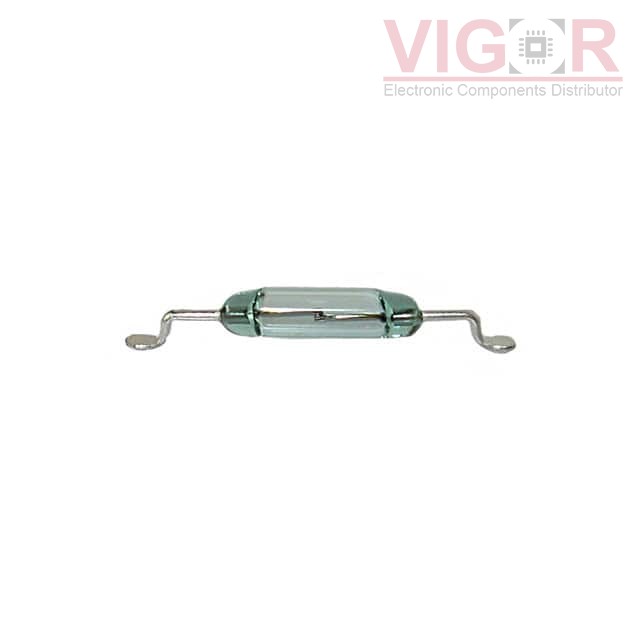

Image is for reference,
please contact us to get the real picture

Part No :: PMC-0701F1520

Manufacturer: PIC GmbH

Description: MICRO SMD REED SWITCH

Catalog: Magnetic, Reed Switches

DataSheet: PMC-0701F1520 PDF

Availability: 2485 pieces

Unit Price: ~~$1.95000~~

Current price of PMC-0701F1520 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PMC-0701F1520 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Glass Body
Circuit:	SPST-NO
Operate Range:	15 ~ 20AT
Release Range:	4AT
Current - Switching:	500mA (AC/DC)
Voltage - Switching AC:	120 V
Voltage - Switching DC:	150 V
Power - Rated:	10W
Operate Time:	0.3 ms
Release Time:	0.1 ms
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Length - Overall:	0.512" (13.00mm)
Size - Body:	0.276" L x 0.059" W x 0.079" H (7.00mm x 1.50mm x 2.00mm)
Height Above Board:	0.079" (2.00mm)
Operating Temperature:	-40°C ~ 125°C
Capacitance:	-
Current - Carry:	700mA (AC/DC)
