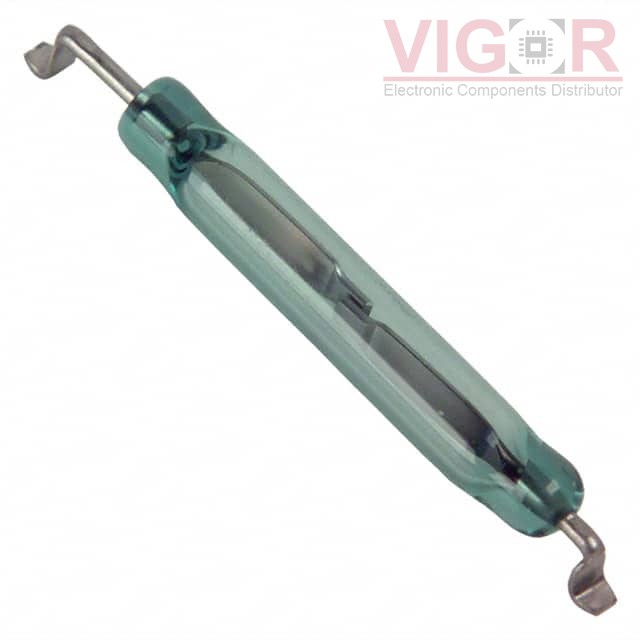

MDSM-4R-12-28

Part No :: MDSM-4R-12-28

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4559748

Description: SWITCH REED SPST-NO 350MA 140V

Catalog: Magnetic, Reed Switches

DataSheet: MDSM-4R-12-28 PDF

Country of origin: -

Date code: -

MDSM-4R-12-28 Specifications

Type	Description
Series:	MDSM-4
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Glass Body
Circuit:	SPST-NO
Operate Range:	12 ~ 28AT
Release Range:	-
Current - Switching:	350mA (AC), 500mA (DC)
Voltage - Switching AC:	140 V
Voltage - Switching DC:	200 V
Power - Rated:	10W
Operate Time:	0.6 ms
Release Time:	0.2 ms
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Length - Overall:	0.760" (19.30mm)
Size - Body:	0.090" Dia x 0.600" L (2.28mm x 15.24mm)
Height Above Board:	0.112" (2.85mm)
Operating Temperature:	-40°C ~ 125°C
Capacitance:	0.2 pF
Current - Carry:	1.2A (DC)
