R20515RS02QE

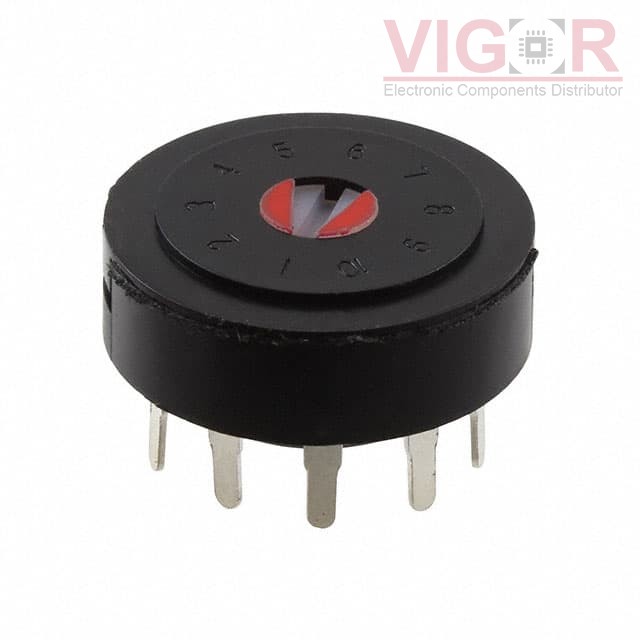

Image is for reference,
please contact us to get the real picture

Part No :: R20515RS02QE

Manufacturer: C&K

Description: SWITCH ROTARY 5POS 5A 125V

Catalog: Rotary Switches

DataSheet: R20515RS02QE PDF

Availability: 0 pieces

Unit Price: ~~$8.95000~~

Current price of R20515RS02QE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

R20515RS02QE Specifications

Type	Description
Series:	R
Package:	Bag
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	5A (AC), 500mA (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Actuator Type:	Screwdriver Slot
Actuator Length:	Flush
Angle of Throw:	36°
Contact Material:	Copper
Contact Finish:	Silver
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	Epoxy Sealed Terminals
Depth Behind Panel:	10.29mm
