MB04L1NZQD

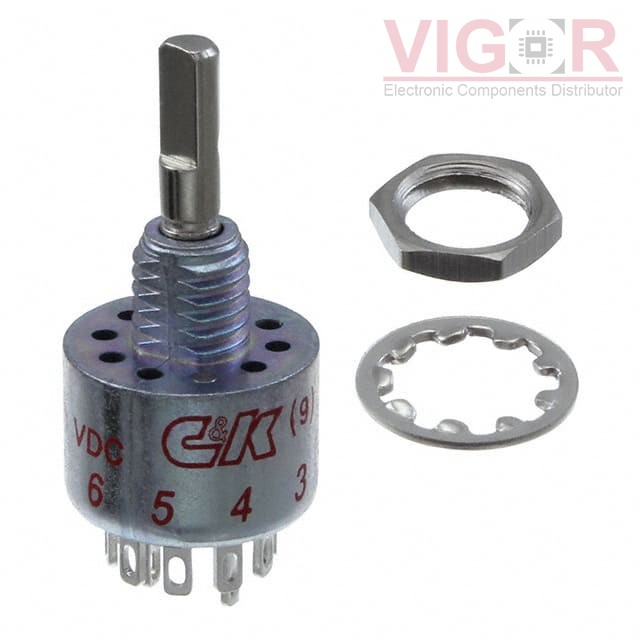

Image is for reference,
please contact us to get the real picture

Part No :: MB04L1NZQD

Manufacturer: C&K

Description: SWITCH ROTARY 4POS 250MA 125V

Catalog: Rotary Switches

DataSheet: MB04L1NZQD PDF

Availability: 52 pieces

Unit Price: ~~$15.79000~~

Current price of MB04L1NZQD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MB04L1NZQD Specifications

Type	Description
Series:	M
Package:	Tray
Part Status:	Active
Number of Positions:	4
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP4T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	250mA (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	10.16mm
Angle of Throw:	36°
Contact Material:	Copper Alloy
Contact Finish:	Silver
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	14.86mm
