R20307RN02Q

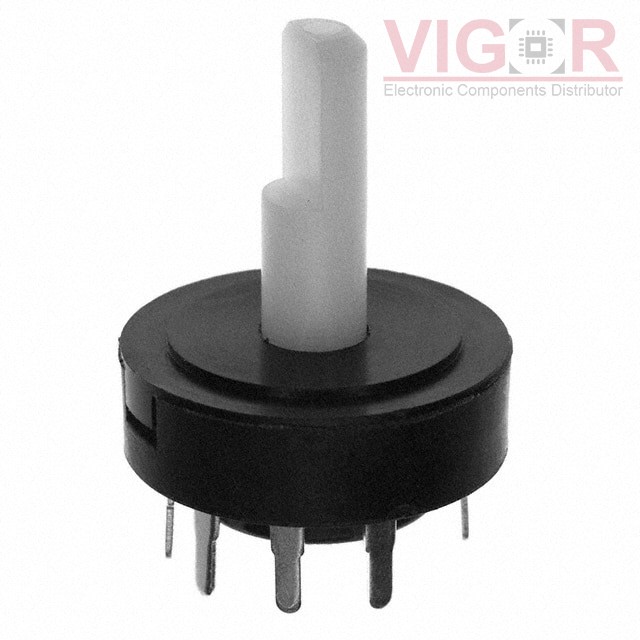

Image is for reference,
please contact us to get the real picture

Part No :: R20307RN02Q

Manufacturer: C&K

Description: SWITCH ROTARY 3POS 5A 125V

Catalog: Rotary Switches

DataSheet: R20307RN02Q PDF

Availability: 367 pieces

Unit Price: ~~$5.67000~~

Current price of R20307RN02Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

R20307RN02Q Specifications

Type	Description
Series:	R
Package:	Tube
Part Status:	Active
Number of Positions:	3
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP3T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	5A (AC), 500mA (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	12.70mm
Angle of Throw:	36°
Contact Material:	Copper
Contact Finish:	Silver
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.29mm

Please confirm the specifications of the products when ordering.
