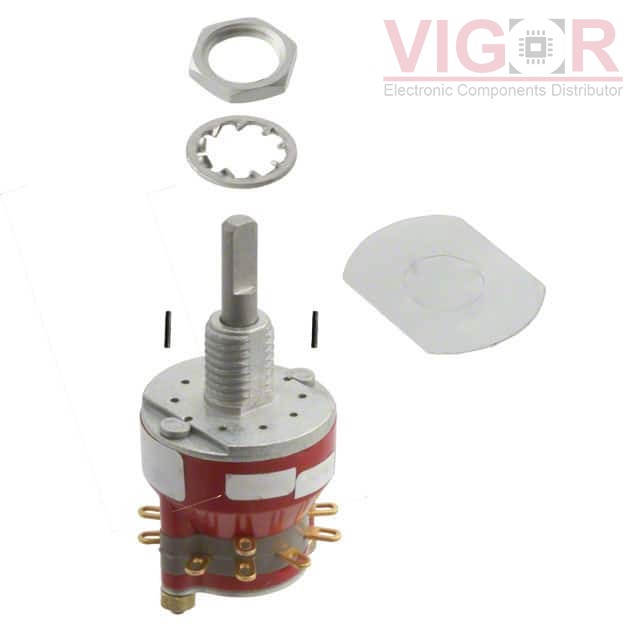

71AD36-01-2-AJN

Image is for reference,
please contact us to get the real picture

Part No :: 71AD36-01-2-AJN

Manufacturer: Grayhill, Inc.

Description: SWITCH ROTARY 2-5POS 250MA 115V

Catalog: Rotary Switches

DataSheet: 71AD36-01-2-AJN PDF

Availability: 13 pieces

Unit Price: ~~$20.71000~~

Current price of 71AD36-01-2-AJN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

71AD36-01-2-AJN Specifications

Type	Description
Series:	71
Package:	Bulk
Part Status:	Active
Number of Positions:	2 ~ 5
Index Stops:	Adjustable
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	250mA (AC/DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	30 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	9.53mm
Angle of Throw:	36°
Contact Material:	Silver Alloy
Contact Finish:	-
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	19.33mm
