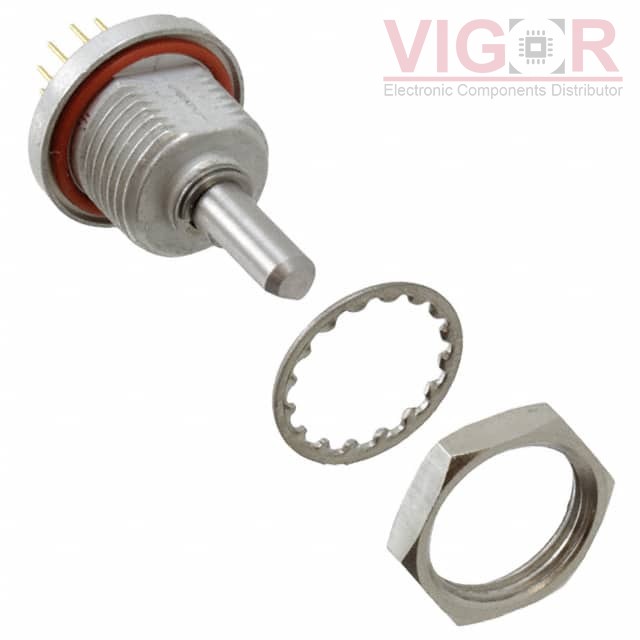

77SPT36-01-1-10N

Part No :: 77SPT36-01-1-10N

Manufacturer: Grayhill, Inc.

VIGOR # :: 2717798

Description: SWITCH ROTARY 10POS 50MA 115V

Catalog: Rotary Switches

DataSheet: 77SPT36-01-1-10N PDF

Country of origin: -

Date code: -

77SPT36-01-1-10N Specifications

Type	Description
Series:	77
Package:	Bulk
Part Status:	Active
Number of Positions:	10
Index Stops:	Continuous
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP10T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	50mA (AC), 200mA (DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	7.98mm
Angle of Throw:	36°
Contact Material:	Silver Cadmium Oxide (AgCdO)
Contact Finish:	Gold
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	Shaft and Panel Sealed
Depth Behind Panel:	4.57mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 84

Shipped from

HK warehouse

Expected Shipping Date

Apr 04 - Apr 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.7200~~	~~$36.72~~
10	~~$35.1474~~	~~$351.47~~
25	~~$34.6226~~	~~$865.56~~
50	~~$33.5732~~	~~$1 678.66~~
100	~~$29.9012~~	~~$2 990.12~~
250	~~$28.8520~~	~~$7 213.00~~

Current price of 77SPT36-01-1-10N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

C3P0206N-A

SWITCH ROTARY 2-6POS 100MA 125V

A40305RNCQ

SWITCH ROTARY 3POS 2.5A 125V

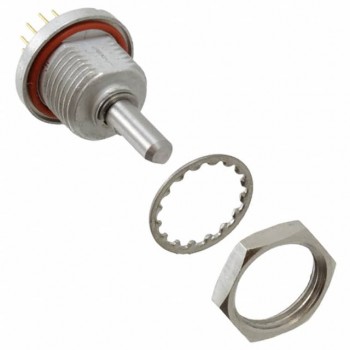

77SP36-01-1-02N
