093101-1-04N

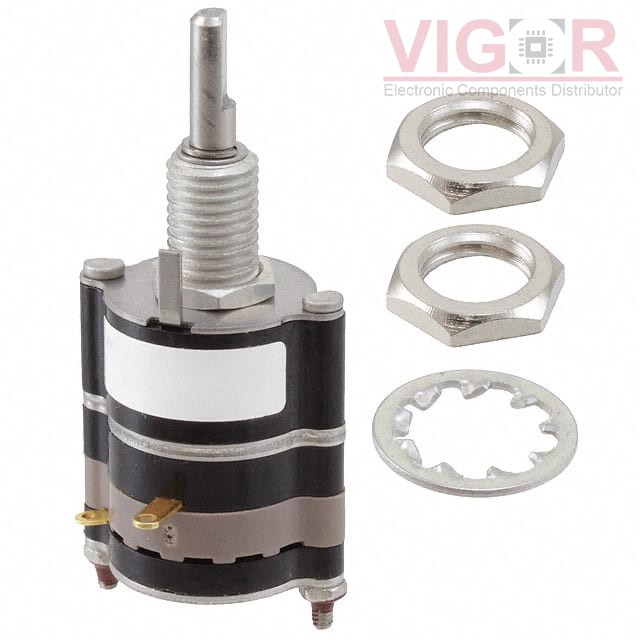

Image is for reference,
please contact us to get the real picture

Part No :: 093101-1-04N

Manufacturer: Grayhill, Inc.

Description: SWITCH ROTARY 4POS 250MA 115V

Catalog: Rotary Switches

DataSheet: 093101-1-04N PDF

Availability: 0 pieces

Unit Price: ~~$43.56400~~

Current price of 093101-1-04N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

093101-1-04N Specifications

Type	Description
Series:	09
Package:	Bulk
Part Status:	Active
Number of Positions:	4
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP4T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	250mA (AC/DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	9.53mm
Angle of Throw:	30°
Contact Material:	Silver Alloy
Contact Finish:	Gold
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	24.38mm

Please confirm the specifications of the products when ordering.
