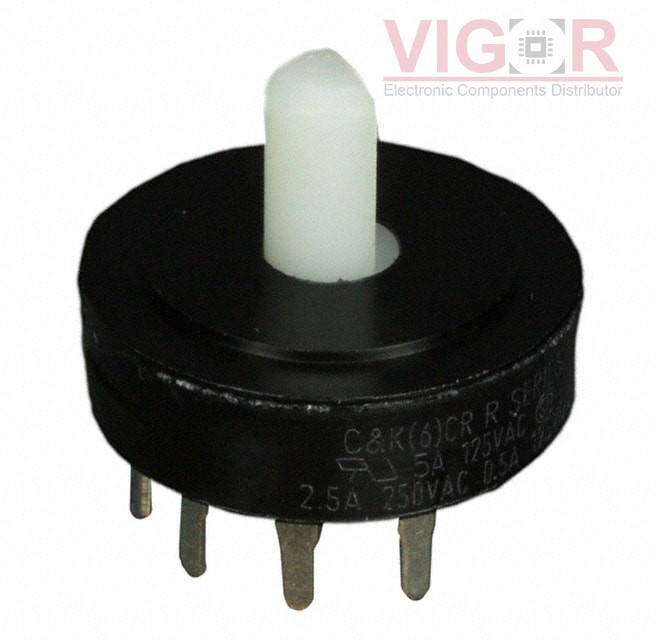

R10305RN02Q

Part No :: R10305RN02Q

Manufacturer: C&K

VIGOR # :: 2717883

Description: SWITCH ROTARY 3POS 5A 125V

Catalog: Rotary Switches

DataSheet: R10305RN02Q PDF

Country of origin: -

Date code: -

R10305RN02Q Specifications

Type	Description
Series:	R
Package:	Tube
Part Status:	Active
Number of Positions:	3
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP3T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	5A (AC), 500mA (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	9.53mm
Angle of Throw:	36°
Contact Material:	Copper
Contact Finish:	Silver
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.29mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 37

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.78~~	~~$4.78~~
10	~~$4.58~~	~~$45.80~~
25	~~$4.18~~	~~$104.53~~
50	~~$3.98~~	~~$199.12~~
100	~~$3.58~~	~~$358.41~~
250	~~$3.29~~	~~$821.35~~
500	~~$3.19~~	~~$1 592.92~~
1000	~~$3.09~~	~~$3 086.28~~

Current price of R10305RN02Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
