D5G0204N-R

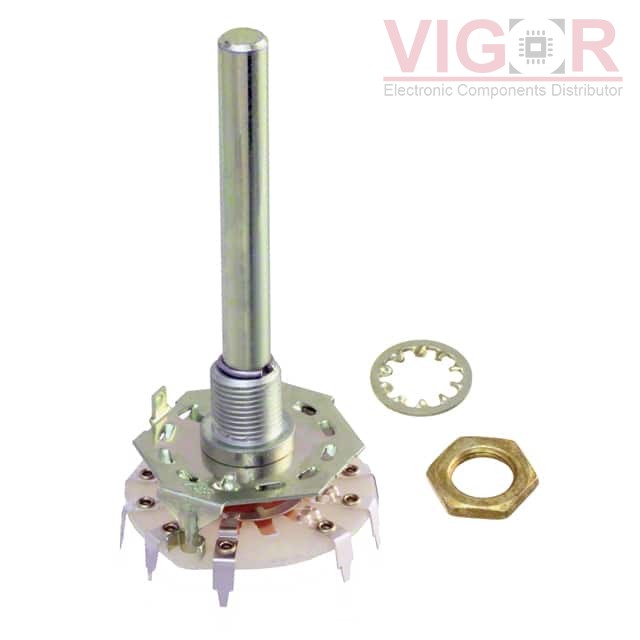

Image is for reference,
please contact us to get the real picture

Part No :: D5G0204N-R

Manufacturer: Electroswitch

Description: SWITCH ROTARY 4POS 500MA 115V

Catalog: Rotary Switches

DataSheet: D5G0204N-R PDF

Availability: 0 pieces

Unit Price: ~~$32.12000~~

Current price of D5G0204N-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

D5G0204N-R Specifications

Type	Description
Series:	D5
Package:	Bulk
Part Status:	Active
Number of Positions:	4
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP4T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	500mA (AC), 1.5A (DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	28 V
Actuator Type:	Round (6.35mm Dia)
Actuator Length:	47.63mm
Angle of Throw:	30°
Contact Material:	Brass
Contact Finish:	Silver
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	14.25mm

Please confirm the specifications of the products when ordering.
