A20503RSCQE

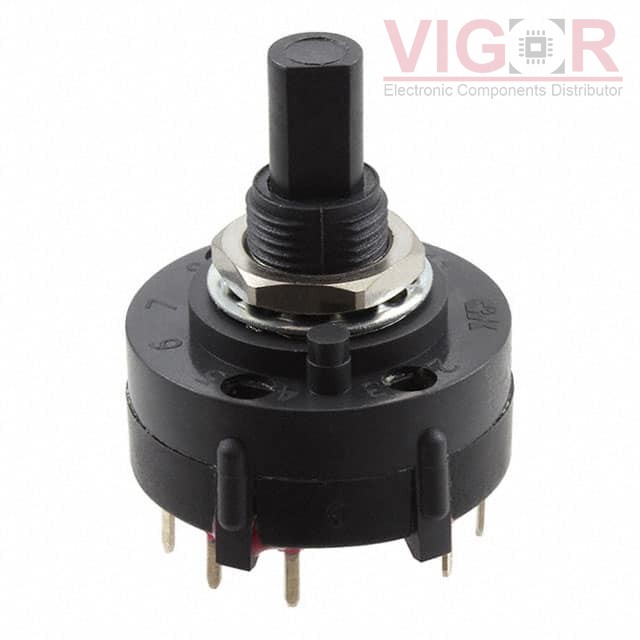

Image is for reference,
please contact us to get the real picture

Part No :: A20503RSCQE

Manufacturer: C&K

Description: SWITCH ROTARY 5POS 2.5A 125V

Catalog: Rotary Switches

DataSheet: A20503RSCQE PDF

Availability: 68 pieces

Unit Price: ~~$11.62000~~

Current price of A20503RSCQE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

A20503RSCQE Specifications

Type	Description
Series:	A
Package:	Tray
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP5T
Contact Timing:	Shorting (MBB)
Current Rating (Amps):	2.5A (AC), 350mA (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	9.53mm
Angle of Throw:	30°
Contact Material:	Silver (Ag)
Contact Finish:	Silver
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	Epoxy Sealed Terminals
Depth Behind Panel:	14.48mm
