56SD30-01-1-AJN

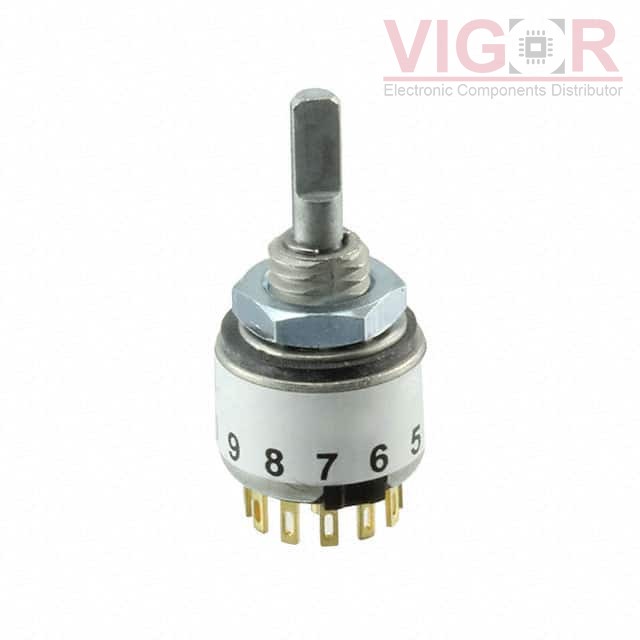

Image is for reference,
please contact us to get the real picture

Part No :: 56SD30-01-1-AJN

Manufacturer: Grayhill, Inc.

Description: SWITCH ROTARY 2-12POS 200MA 115V

Catalog: Rotary Switches

DataSheet: 56SD30-01-1-AJN PDF

Availability: 154 pieces

Unit Price: ~~$16.57000~~

Current price of 56SD30-01-1-AJN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

56SD30-01-1-AJN Specifications

Type	Description
Series:	56
Package:	Bulk
Part Status:	Active
Number of Positions:	2 ~ 12
Index Stops:	Adjustable
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP12T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	200mA (AC/DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	30 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	9.53mm
Angle of Throw:	30°
Contact Material:	Brass
Contact Finish:	Silver
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	Shaft and Panel Sealed
Depth Behind Panel:	12.19mm

Please confirm the specifications of the products when ordering.
