77SPT36-01-1-02N

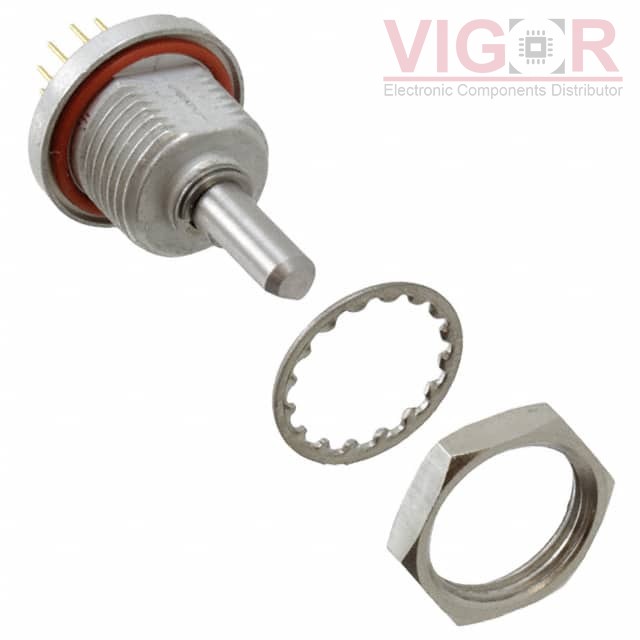

Image is for reference,
please contact us to get the real picture

Part No :: 77SPT36-01-1-02N

Manufacturer: Grayhill, Inc.

Description: SWITCH ROTARY 2POS 50MA 115V

Catalog: Rotary Switches

DataSheet: 77SPT36-01-1-02N PDF

Availability: 275 pieces

Unit Price: ~~$36.72000~~

Current price of 77SPT36-01-1-02N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

77SPT36-01-1-02N Specifications

Type	Description
Series:	77
Package:	Bulk
Part Status:	Active
Number of Positions:	2
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SPDT
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	50mA (AC), 200mA (DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	7.98mm
Angle of Throw:	36°
Contact Material:	Silver Cadmium Oxide (AgCdO)
Contact Finish:	Gold
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	Shaft and Panel Sealed
Depth Behind Panel:	4.57mm

Please confirm the specifications of the products when ordering.
