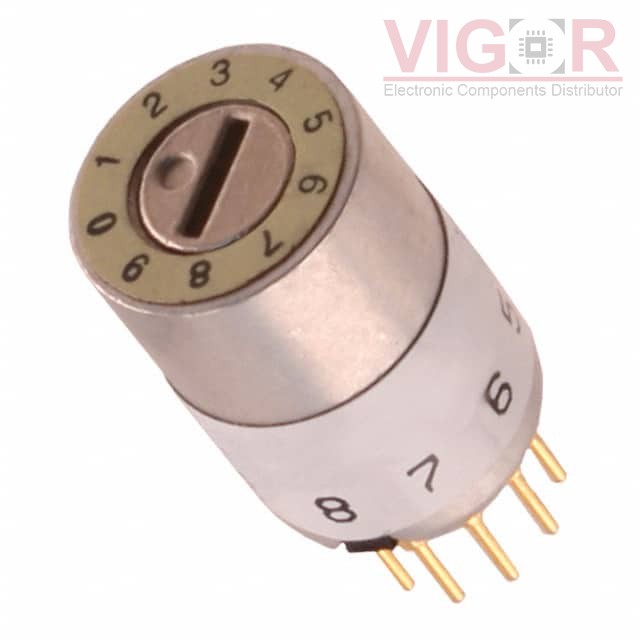

75AP36-01-1-08N

Part No :: 75AP36-01-1-08N

Manufacturer: Grayhill, Inc.

Description: SWITCH ROTARY 8POS 200MA 115V

Catalog: Rotary Switches

DataSheet: 75AP36-01-1-08N PDF

Availability: 200 pieces

Current price of 75AP36-01-1-08N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

75AP36-01-1-08N Specifications

Type	Description
Series:	75
Package:	Bulk
Part Status:	Active
Number of Positions:	8
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP8T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	200mA (AC/DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	30 V
Actuator Type:	Screwdriver Slot
Actuator Length:	Flush
Angle of Throw:	36°
Contact Material:	Silver Cadmium Oxide (AgCdO)
Contact Finish:	Gold
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	12.42mm

Please confirm the specifications of the products when ordering.
