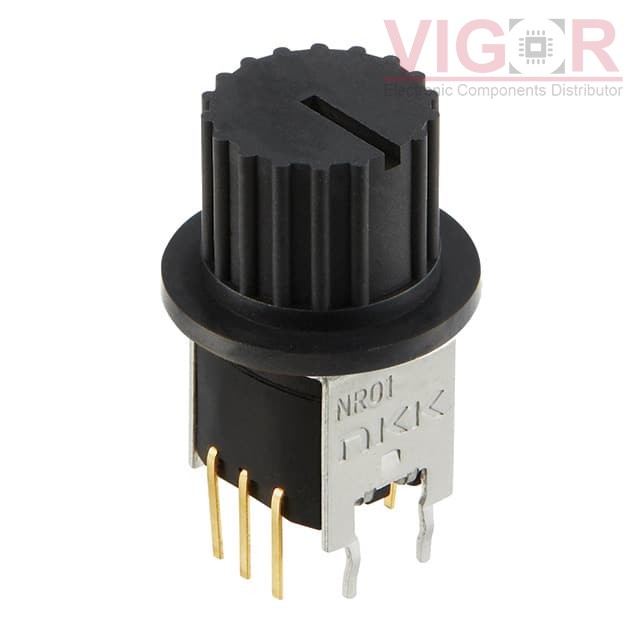

NR01105ANG13-2A

Part No :: NR01105ANG13-2A

Manufacturer: NKK Switches

Description: SWITCH ROTARY SP5T 0.4VA 28V

Catalog: Rotary Switches

DataSheet: NR01105ANG13-2A PDF

Availability: 7441 pieces

Current price of NR01105ANG13-2A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NR01105ANG13-2A Specifications

Type	Description
Series:	NR01
Package:	Bulk
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	28 V
Voltage Rating - DC:	28 V
Actuator Type:	Knob
Actuator Length:	10.80mm
Angle of Throw:	45°
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.50mm

Please confirm the specifications of the products when ordering.
