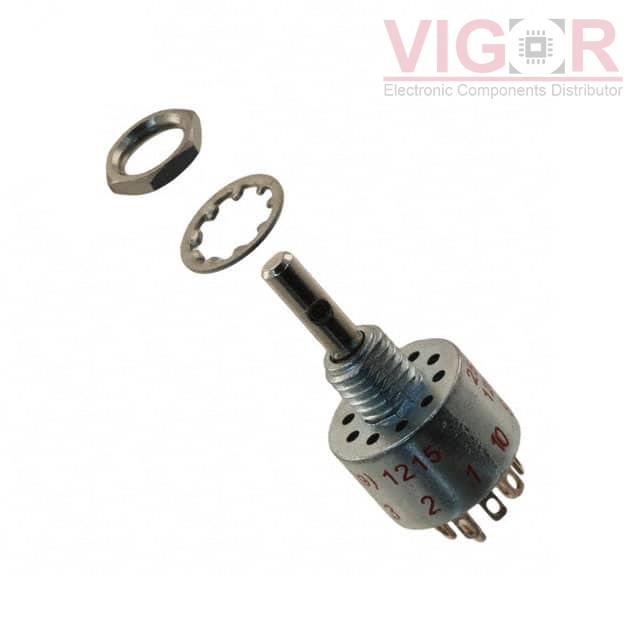

MA05L1NZGD

Part No :: MA05L1NZGD

Manufacturer: C&K

Description: SWITCH ROTARY 5POS 250MA 125V

Catalog: Rotary Switches

DataSheet: MA05L1NZGD PDF

Availability: 91 pieces

Current price of MA05L1NZGD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MA05L1NZGD Specifications

Type	Description
Series:	M
Package:	Tray
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	250mA (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (3.17mm Dia)
Actuator Length:	10.16mm
Angle of Throw:	36°
Contact Material:	Copper Alloy
Contact Finish:	Gold
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	14.86mm
