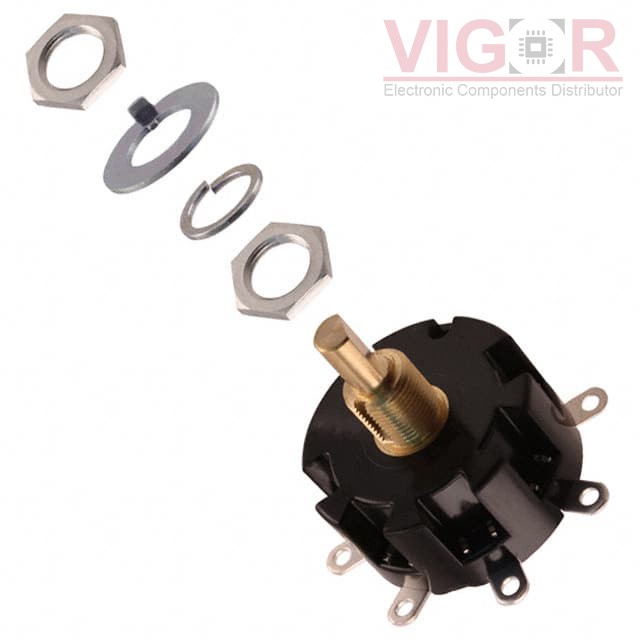

HS13Z-D

Image is for reference,
please contact us to get the real picture

Part No :: HS13Z-D

Manufacturer: NKK Switches

Description: SWITCH ROTARY 4POS 6A 125V

Catalog: Rotary Switches

DataSheet: HS13Z-D PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HS13Z-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HS13Z-D Specifications

Type	Description
Series:	HS
Package:	Box
Part Status:	Obsolete
Number of Positions:	4
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP4T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	6A (AC), 5A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Flatted (6mm Dia)
Actuator Length:	10.00mm
Angle of Throw:	45°
Contact Material:	Phosphor Bronze
Contact Finish:	-
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	20.00mm

Please confirm the specifications of the products when ordering.
