435986-1

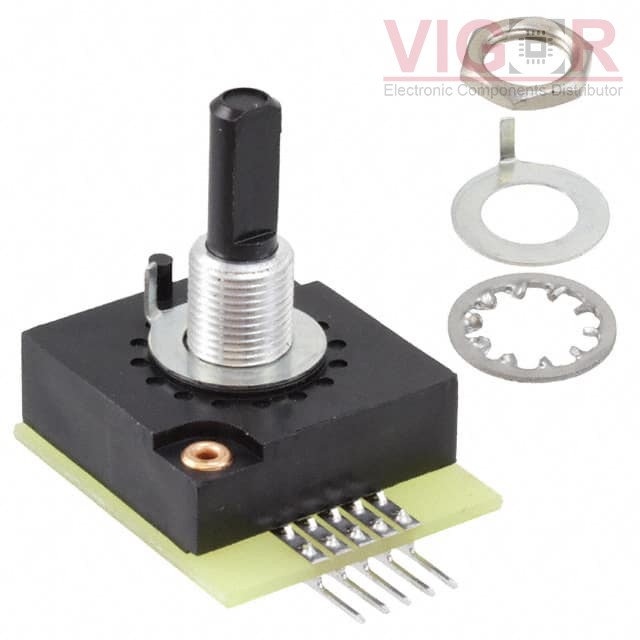

Image is for reference,
please contact us to get the real picture

Part No :: 435986-1

Manufacturer: TE Connectivity ALCOSWITCH Switches

Description: SWITCH ROTARY 16POS 125MA 115V

Catalog: Rotary Switches

DataSheet: 435986-1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 435986-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

435986-1 Specifications

Type	Description
Series:	3100
Package:	Tray
Part Status:	Active
Number of Positions:	16
Index Stops:	Continuous
Number of Decks:	1
Number of Poles per Deck:	-
Circuit per Deck:	Hexadecimal
Contact Timing:	Not Specified
Current Rating (Amps):	125mA (AC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	-
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	14.88mm
Angle of Throw:	22.5°
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	13.34mm

Please confirm the specifications of the products when ordering.
