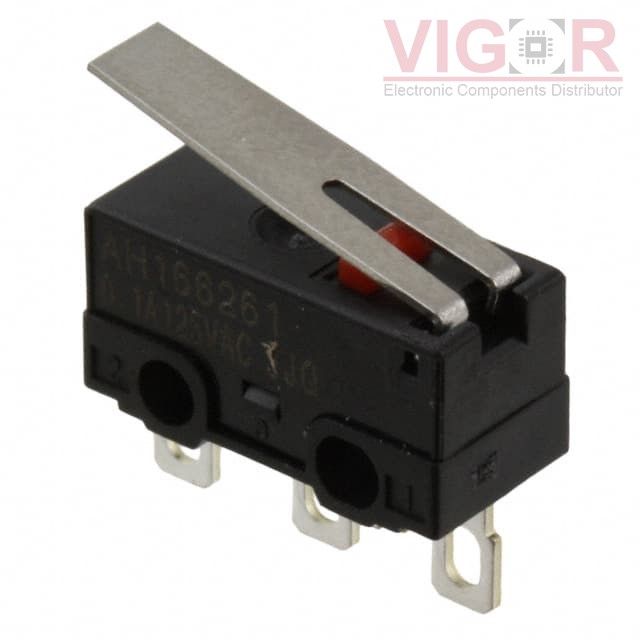

AH1682619-A

Part No :: AH1682619-A

Manufacturer: Panasonic

Description: SWITCH SNAP ACT SPDT 100MA 125V

Catalog: Snap Action, Limit Switches

DataSheet: AH1682619-A PDF

Availability: 3 pieces

Unit Price: ~~$1.75000~~

Current price of AH1682619-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AH1682619-A Specifications

Type	Description
Series:	AH1
Package:	Tube
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	100mA (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Lever, Straight
Mounting Type:	Chassis Mount
Termination Style:	Solder Lug
Ingress Protection:	-
Features:	-
Operating Force:	25gf
Release Force:	2.500gf
Pretravel:	0.083" (2.1mm)
Differential Travel:	0.020" (0.5mm)
Overtravel:	0.022" (0.55mm)
Operating Temperature:	-25°C ~ 85°C

Please confirm the specifications of the products when ordering.
