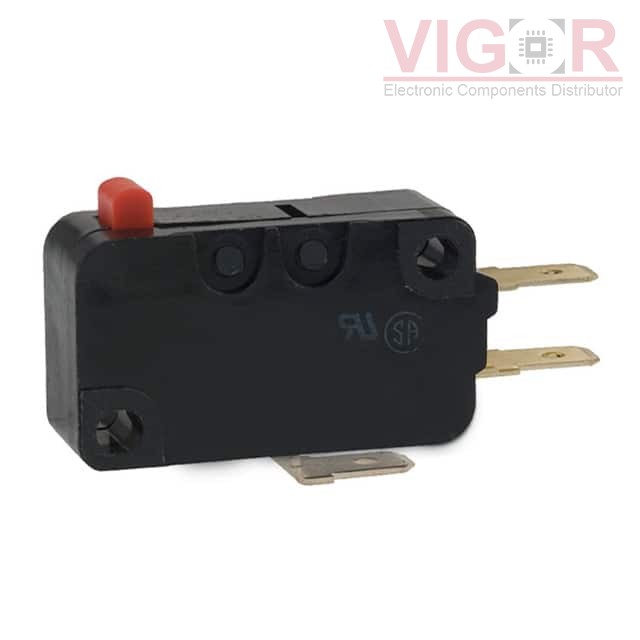

D3V-16-1C25

Part No :: D3V-16-1C25

Manufacturer: Omron Electronics Components

VIGOR # :: 2714603

Description: SWITCH SNAP ACTION SPDT 16A 250V

Catalog: Snap Action, Limit Switches

DataSheet: D3V-16-1C25 PDF

Country of origin: -

Date code: -

D3V-16-1C25 Specifications

Type	Description
Series:	D3V
Package:	Bulk
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	16A (AC), 10A (DC)
Voltage Rating - AC:	250 V
Voltage Rating - DC:	30 V
Actuator Type:	Round (Pin Plunger)
Mounting Type:	Chassis Mount
Termination Style:	Quick Connect - 0.187" (4.7mm)
Ingress Protection:	IP40
Features:	-
Operating Force:	200gf
Release Force:	50gf
Pretravel:	0.047" (1.2mm)
Differential Travel:	0.016" (0.4mm)
Overtravel:	0.040" (1.0mm)
Operating Temperature:	-25°C ~ 105°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 26

Shipped from

HK warehouse

Expected Shipping Date

Oct 17 - Oct 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.2300~~	~~$4.23~~
10	~~$3.7293~~	~~$37.29~~
25	~~$3.4810~~	~~$87.02~~
50	~~$3.3152~~	~~$165.76~~
100	~~$2.8179~~	~~$281.79~~
250	~~$2.5693~~	~~$642.32~~
500	~~$2.4035~~	~~$1 201.75~~
1000	~~$2.3206~~	~~$2 320.62~~
5000	~~$2.2101~~	~~$11 050.60~~

Current price of D3V-16-1C25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
