AV4524

AV4524

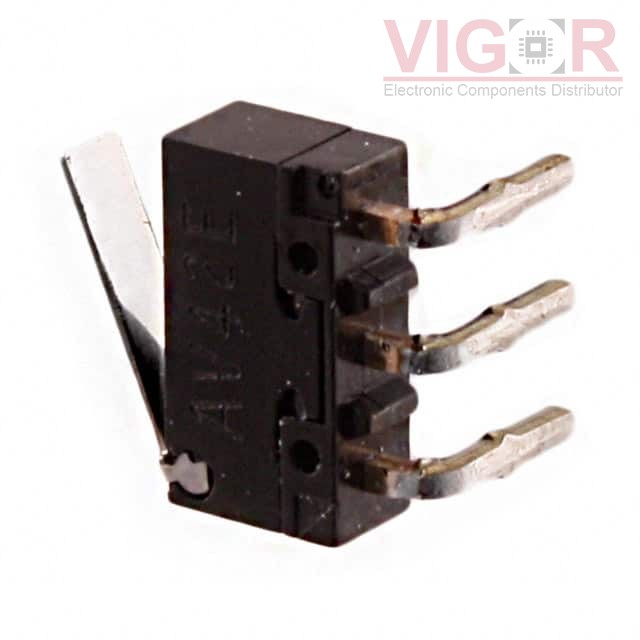

Image is for reference,
please contact us to get the real picture

Part No :

AV4524

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPDT 500MA 30V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
DataSheet
AV4524 PDF
Availability
2202 pieces
Unit Price
$2.26000

Current price of AV4524 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AV4524 Specifications
Type Description
Series:AV4
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):500mA (DC)
Voltage Rating - AC:-
Voltage Rating - DC:30 V
Actuator Type:Lever, Straight
Mounting Type:Through Hole, Right Angle
Termination Style:PC Pin
Ingress Protection:-
Features:Actuator Mounted Right Side
Operating Force:25gf
Release Force:-
Pretravel:0.094" (2.4mm)
Differential Travel:0.027" (0.7mm)
Overtravel:0.015" (0.4mm)
Operating Temperature:-25°C ~ 80°C
