AH168061-A

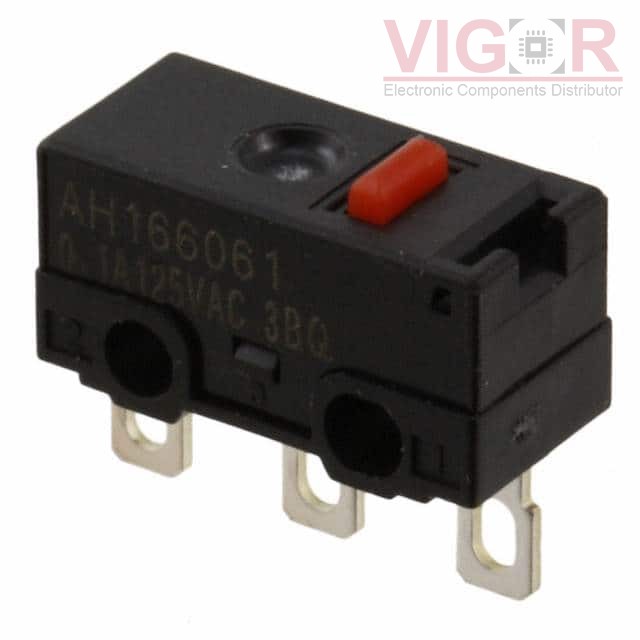

Product image
Product thumb
Part No :

AH168061-A

Manufacturer
Panasonic
VIGOR # :

2717171

Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
DataSheet
AH168061-A PDF
Country of origin
-
Date code
-
ads
AH168061-A Specifications
Type Description
Series:AH1
Package:Tube
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Ingress Protection:-
Features:-
Operating Force:74gf
Release Force:10gf
Pretravel:0.020" (0.5mm)
Differential Travel:0.005" (0.12mm)
Overtravel:0.010" (0.25mm)
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 120
Shipped from
HK warehouse
Expected Shipping Date
Oct 17 - Oct 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.5600 $1.56
10 $1.4750 $14.75
25 $1.4160 $35.40
50 $1.3570 $67.85
100 $1.2980 $129.80
250 $1.0325 $258.13
500 $0.9440 $472.00
1000 $0.9145 $914.50
5000 $0.8260 $4 130.00

Current price of AH168061-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
