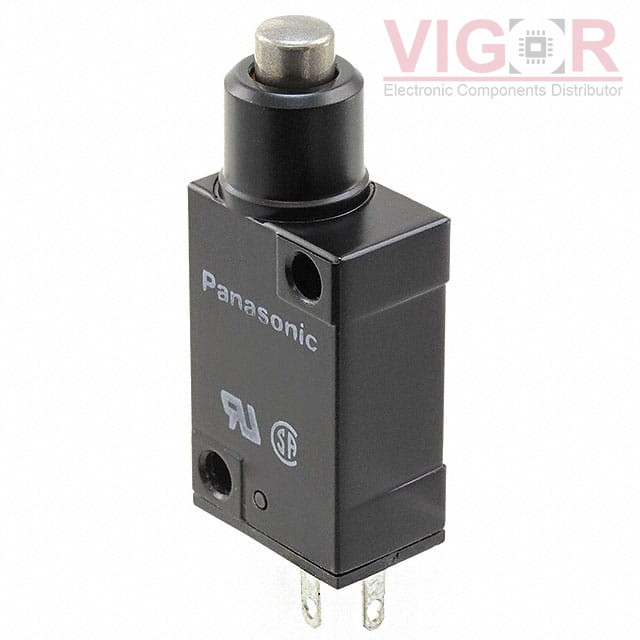

AZ40019

AZ40019

Image is for reference,
please contact us to get the real picture

Part No :

AZ40019

Manufacturer
Panasonic
Description
SWITCH SNAP ACTION SPDT 5A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Oct 14 - Oct 18 2025
DataSheet
AZ40019 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AZ40019 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ40019 Specifications
Type Description
Series:AZ4
Package:Bulk
Part Status:Obsolete
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):5A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection:IP64 - Dust Tight, Water Resistant
Features:-
Operating Force:700gf
Release Force:70gf
Pretravel:0.040" (1.0mm)
Differential Travel:0.006" (0.15mm)
Overtravel:0.158" (4.0mm)
Operating Temperature:-20°C ~ 60°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

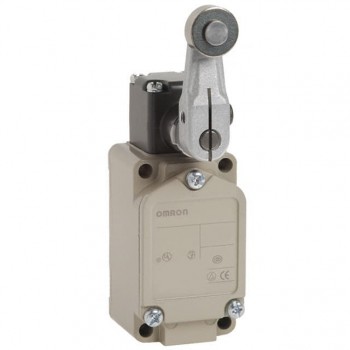

HOT WLCA2-TS

WLCA2-TS

SWITCH SNAP ACTION SPDT 10A 125V

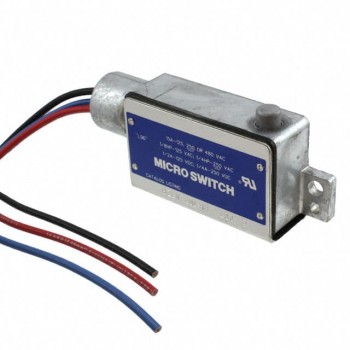

HOT BZLN-RH5

BZLN-RH5

SWITCH SNAP ACTION SPDT 15A 125V

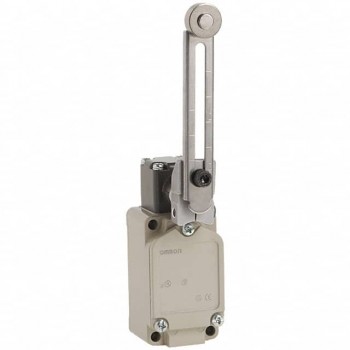

HOT WLCA12-TS
