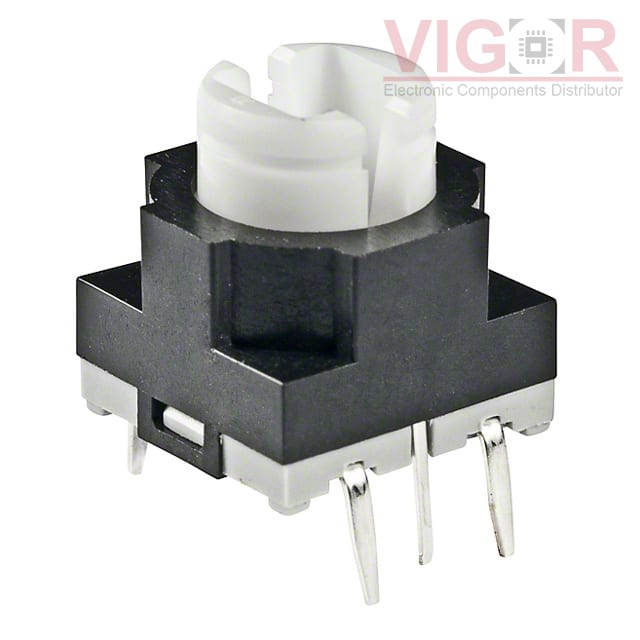

JB15HBPC

Part No :: JB15HBPC

Manufacturer: NKK Switches

VIGOR # :: 2708402

Description: SWITCH TACT SPST-NO 0.125A 24V

Catalog: Tactile Switches

DataSheet: JB15HBPC PDF

Country of origin: -

Date code: -

JB15HBPC Specifications

Type	Description
Series:	JB
Package:	Tray
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.125A @ 24VDC
Actuator Type:	Plunger for Cap
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	10.00mm x 10.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	1.8 VDC
Operating Force:	265gf
Ingress Protection:	-
Features:	Process Sealed
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 298

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.73~~	~~$4.73~~
10	~~$4.51~~	~~$45.08~~
25	~~$4.28~~	~~$107.08~~
50	~~$4.17~~	~~$208.51~~
100	~~$3.83~~	~~$383.20~~
250	~~$3.61~~	~~$901.66~~
500	~~$3.27~~	~~$1 634.25~~
1000	~~$3.10~~	~~$3 099.44~~

Current price of JB15HBPC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
