EVQ-PNF05M

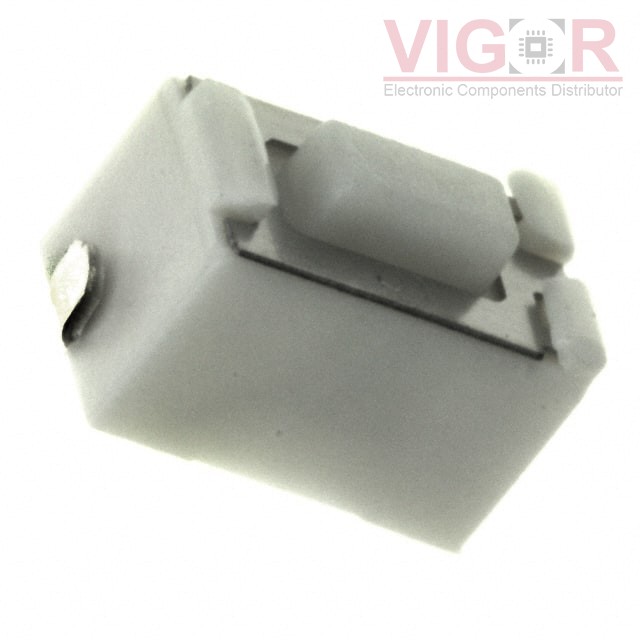

Image is for reference,
please contact us to get the real picture

Part No :: EVQ-PNF05M

Manufacturer: Panasonic

Description: SWITCH TACTILE SPST-NO 0.05A 12V

Catalog: Tactile Switches

DataSheet: EVQ-PNF05M PDF

Availability: 47159 pieces

Unit Price: ~~$0.55000~~

Current price of EVQ-PNF05M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EVQ-PNF05M Specifications

Type	Description
Series:	EVQPN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Standard
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	5.00mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	J Lead
Outline:	6.00mm x 3.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	160gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
