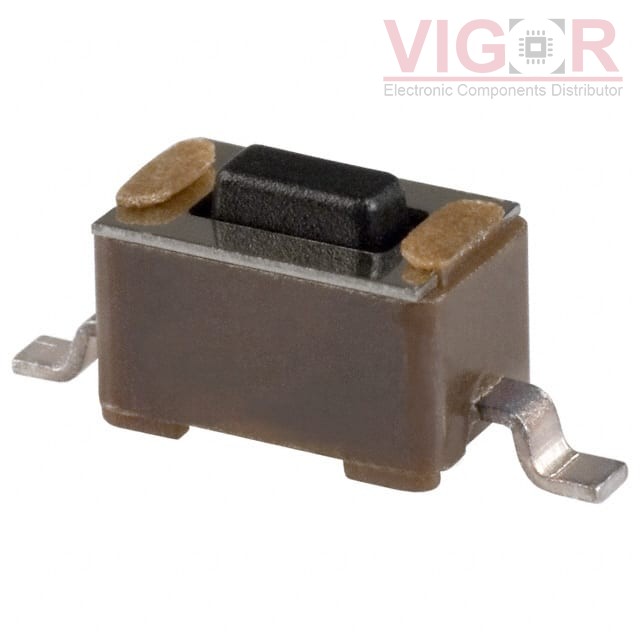

TL3302AF180QG

Part No :: TL3302AF180QG

Manufacturer: E-Switch

Description: SWITCH TACTILE SPST-NO 0.05A 12V

Catalog: Tactile Switches

DataSheet: TL3302AF180QG PDF

Availability: 6771 pieces

Current price of TL3302AF180QG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TL3302AF180QG Specifications

Type	Description
Series:	TL3302
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Rectangular Button
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	4.30mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	Gull Wing
Outline:	6.00mm x 3.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	180gf
Ingress Protection:	-
Features:	Tactile Feedback
Operating Temperature:	-20°C ~ 70°C
