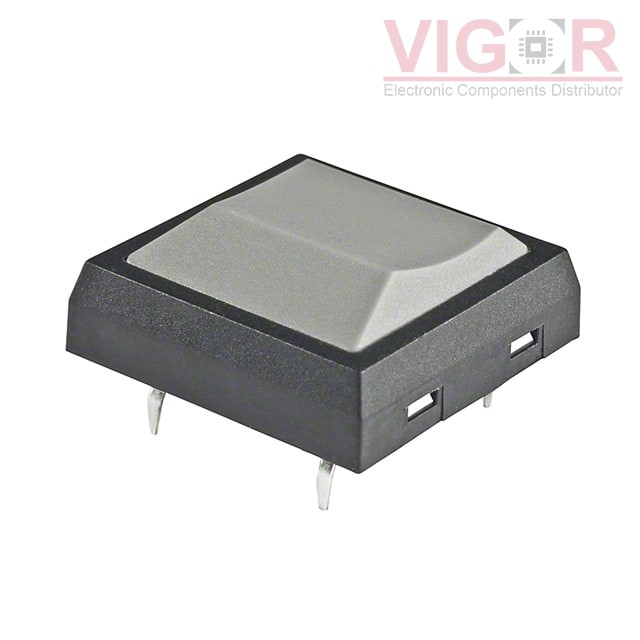

JF15SP3H

Part No :: JF15SP3H

Manufacturer: NKK Switches

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

DataSheet: JF15SP3H PDF

Availability: 25 pieces

Current price of JF15SP3H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JF15SP3H Specifications

Type	Description
Series:	JF
Package:	Tray
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	6.78mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	17.70mm x 17.70mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	196gf
Ingress Protection:	-
Features:	Process Sealed
Operating Temperature:	-25°C ~ 85°C

Please confirm the specifications of the products when ordering.
