EVQ-PCP05K

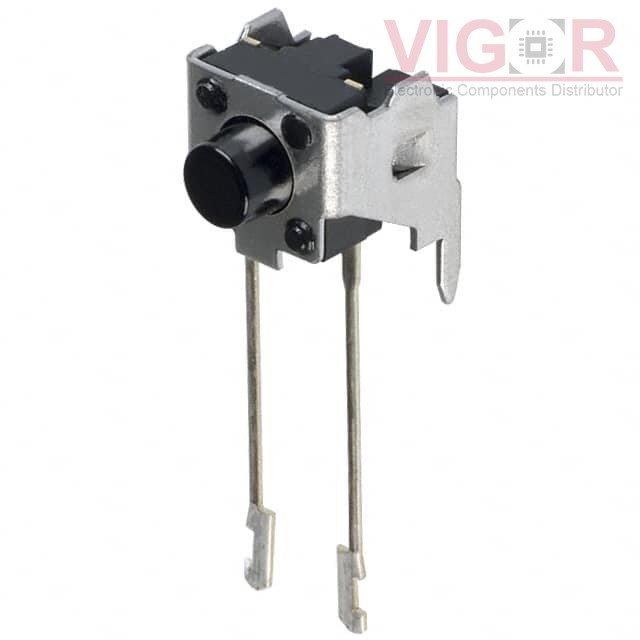

Image is for reference,
please contact us to get the real picture

Part No :: EVQ-PCP05K

Manufacturer: Panasonic

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVQ-PCP05K PDF

Availability: 1318 pieces

Unit Price: ~~$0.25000~~

Current price of EVQ-PCP05K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EVQ-PCP05K Specifications

Type	Description
Series:	EVQPC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Standard
Mounting Type:	Through Hole, Right Angle
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	4.75mm
Actuator Orientation:	Side Actuated
Termination Style:	PC Pin
Outline:	7.50mm x 6.95mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	130gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-20°C ~ 70°C
