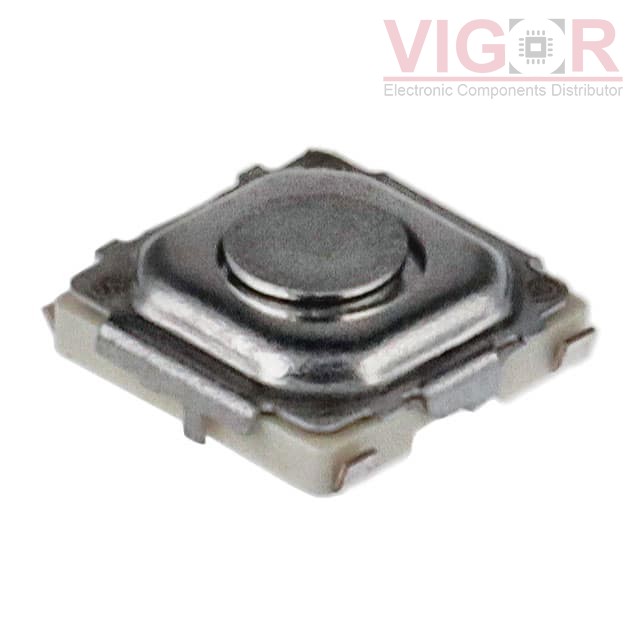

EVQ-PT5A15

Part No :: EVQ-PT5A15

Manufacturer: Panasonic

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVQ-PT5A15 PDF

Availability: 2917 pieces

Unit Price: ~~$0.45000~~

Current price of EVQ-PT5A15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EVQ-PT5A15 Specifications

Type	Description
Series:	EVQPT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Standard
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	1.50mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	J Lead
Outline:	4.90mm x 4.90mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	102gf
Ingress Protection:	-
Features:	Push Plate
Operating Temperature:	-20°C ~ 70°C
