B3W-9012-R2N

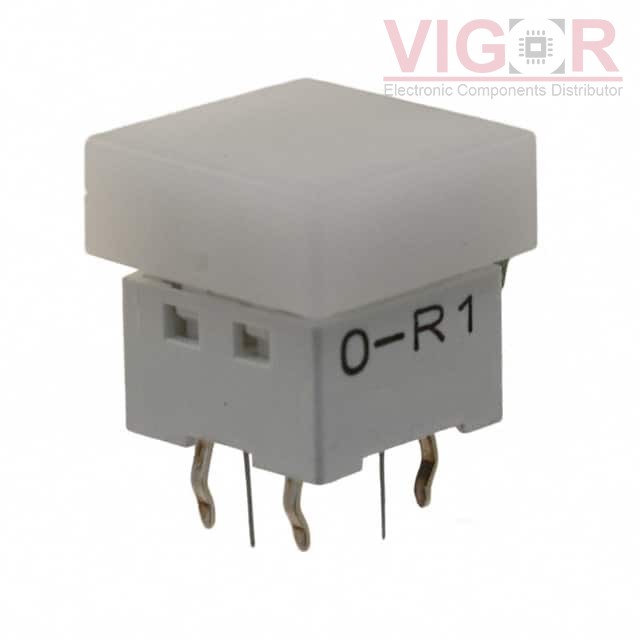

Image is for reference,
please contact us to get the real picture

Part No :: B3W-9012-R2N

Manufacturer: Omron Electronics Components

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

DataSheet: B3W-9012-R2N PDF

Availability: 262 pieces

Unit Price: ~~$5.06000~~

Current price of B3W-9012-R2N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B3W-9012-R2N Specifications

Type	Description
Series:	B3W-9
Package:	Bulk
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	10.20mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	12.00mm x 12.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	1.8 VDC
Operating Force:	230gf
Ingress Protection:	-
Features:	Sealed - Fully
Operating Temperature:	-25°C ~ 70°C
