CB315FP

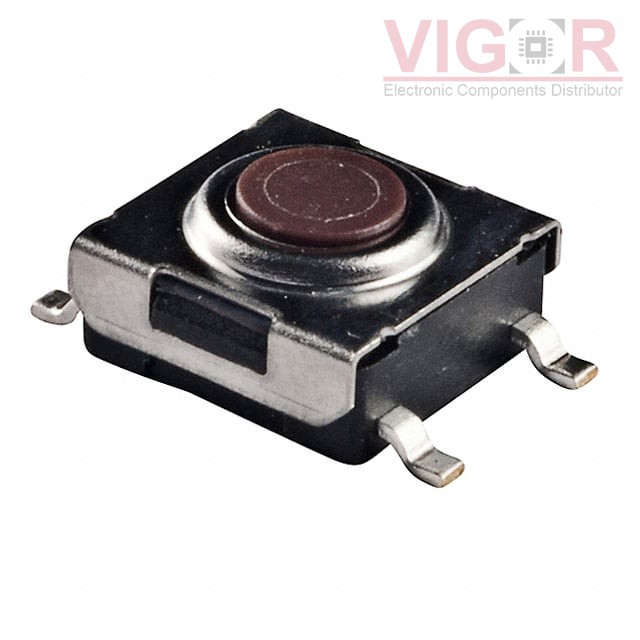

Product image
Product thumb
Part No :

CB315FP

Manufacturer
NKK Switches
VIGOR # :

2708843

Description
SWITCH TACTILE SPST-NO 0.05A 24V
Catalog
Tactile Switches
DataSheet
CB315FP PDF
Country of origin
-
Date code
-
ads
CB315FP Specifications
Type Description
Series:CB3
Package:Tray
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 24VDC
Actuator Type:Standard
Mounting Type:Surface Mount
Actuator Height off PCB, Vertical:3.10mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:Gull Wing
Outline:6.20mm x 6.20mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:157gf
Ingress Protection:-
Features:Sealed - Fully
Operating Temperature:-25°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 3221421
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.4700 $1.47
10 $1.4096 $14.10
25 $1.2968 $32.42
50 $1.1277 $56.38
100 $1.0713 $107.13
250 $1.0431 $260.78
500 $1.0149 $507.45
1000 $0.7894 $789.37
5000 $0.7330 $3 664.95

Current price of CB315FP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
EVQ-Q2F01W

EVQ-Q2F01W

SWITCH TACTILE SPST-NO 0.02A 15V

MJTP1138B

MJTP1138B

SWITCH TACTILE SPST-NO 0.05A 12V

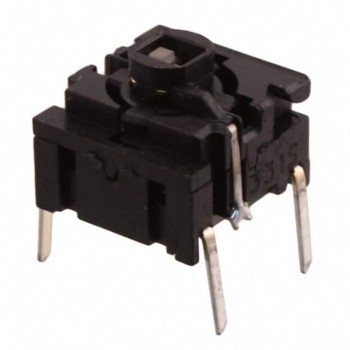

5GTH93582
