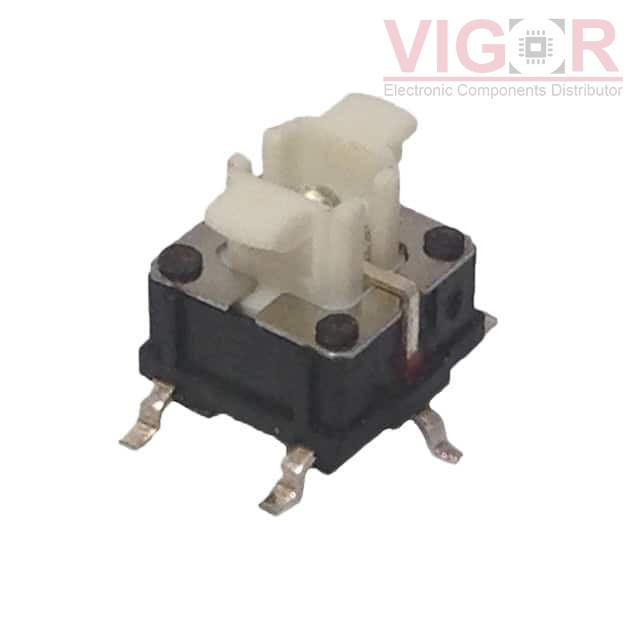

TL3265GQNN

Part No :: TL3265GQNN

Manufacturer: E-Switch

Description: SMT ILLUMINATED TACT SWITCH

Catalog: Tactile Switches

DataSheet: TL3265GQNN PDF

Availability: 439 pieces

Current price of TL3265GQNN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TL3265GQNN Specifications

Type	Description
Series:	TL3265
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Plunger for Cap
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	7.20mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	Gull Wing
Outline:	7.00mm x 6.80mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Green
Illumination Voltage (Nominal):	-
Operating Force:	160gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
