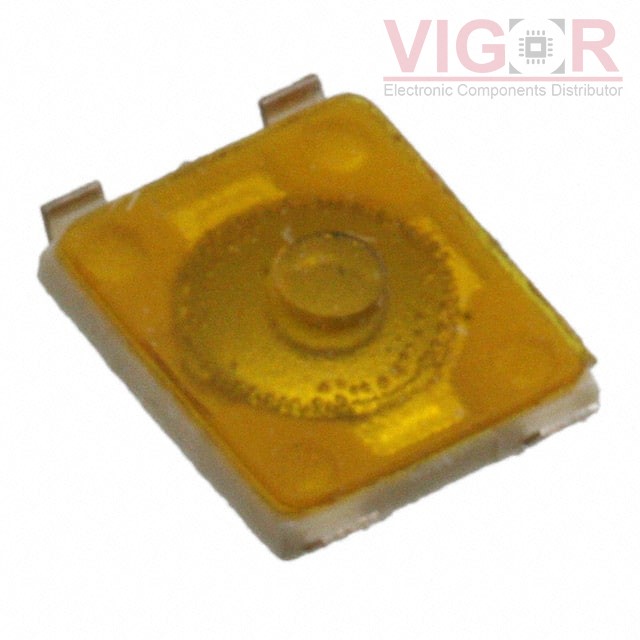

TL3700AF100QG

Part No :: TL3700AF100QG

Manufacturer: E-Switch

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

DataSheet: TL3700AF100QG PDF

Availability: 0 pieces

Current price of TL3700AF100QG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TL3700AF100QG Specifications

Type	Description
Series:	TL3700
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Standard
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	0.65mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	Gull Wing
Outline:	3.00mm x 2.60mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	100gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-40°C ~ 85°C
