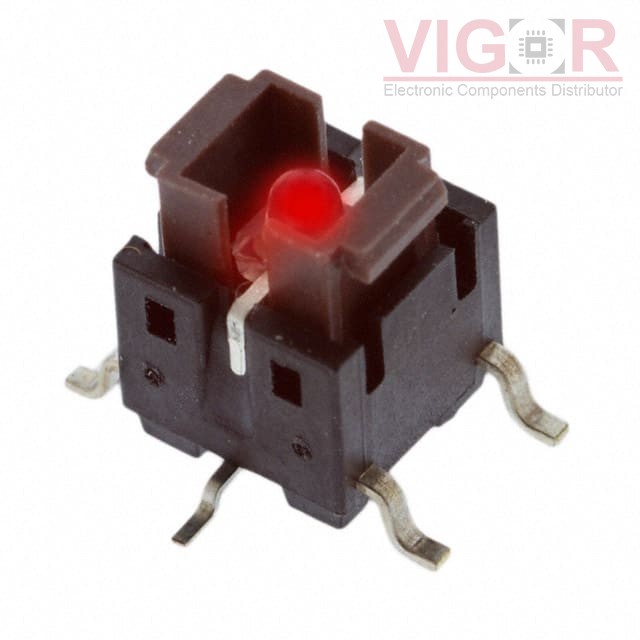

TL3240F100R

Part No :: TL3240F100R

Manufacturer: E-Switch

Description: SWITCH TACTILE SPST-NO 0.05A 12V

Catalog: Tactile Switches

DataSheet: TL3240F100R PDF

Availability: 1228 pieces

Current price of TL3240F100R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TL3240F100R Specifications

Type	Description
Series:	TL3240
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Plunger for Cap
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	7.80mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	Gull Wing
Outline:	6.10mm x 6.10mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	1.8 VDC
Operating Force:	100gf
Ingress Protection:	-
Features:	Board Guide
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
