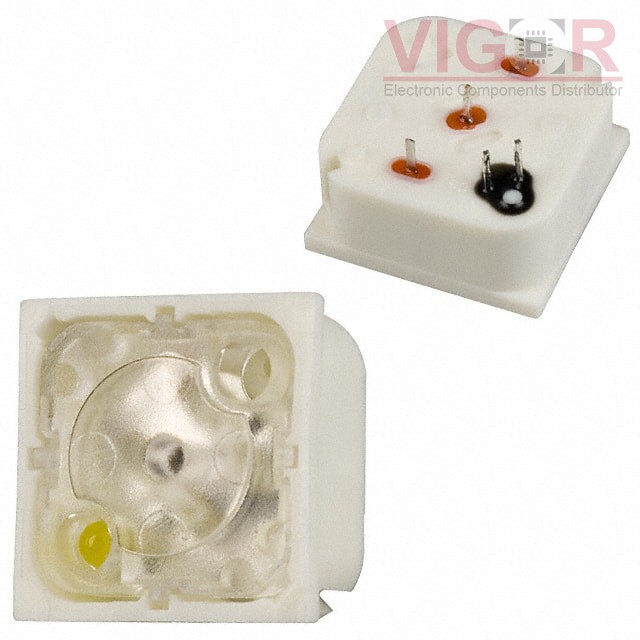

3.14001.0330000

Part No :: 3.14001.0330000

Manufacturer: RAFI

Description: SWITCH TACTILE SPST-NO 0.1A 42V

Catalog: Tactile Switches

DataSheet: 3.14001.0330000 PDF

Availability: 28 pieces

Current price of 3.14001.0330000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3.14001.0330000 Specifications

Type	Description
Series:	RF19
Package:	Tube
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.1A @ 42VAC/DC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	9.70mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	19.05mm x 19.05mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Yellow
Illumination Voltage (Nominal):	-
Operating Force:	204 ~ 306gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
