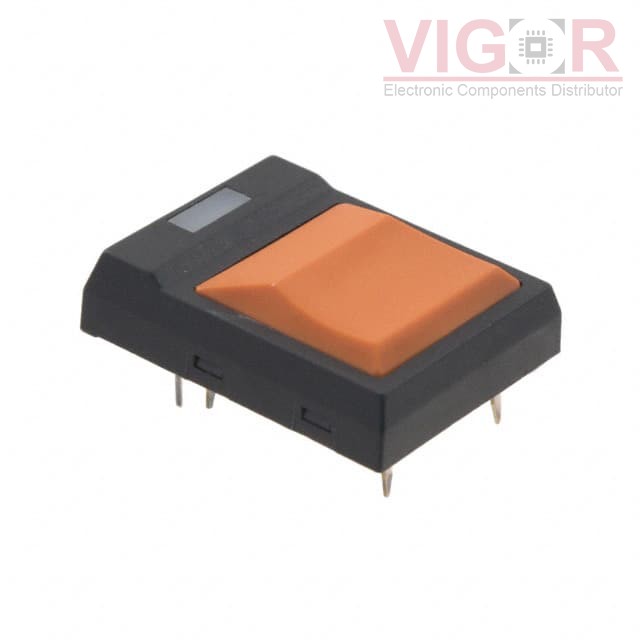

JF15RP3DC

Part No :: JF15RP3DC

Manufacturer: NKK Switches

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

DataSheet: JF15RP3DC PDF

Availability: 0 pieces

Current price of JF15RP3DC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JF15RP3DC Specifications

Type	Description
Series:	JF
Package:	Box
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	6.78mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	22.80mm x 17.70mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	2 VDC
Operating Force:	200gf
Ingress Protection:	-
Features:	Process Sealed
Operating Temperature:	-25°C ~ 70°C
