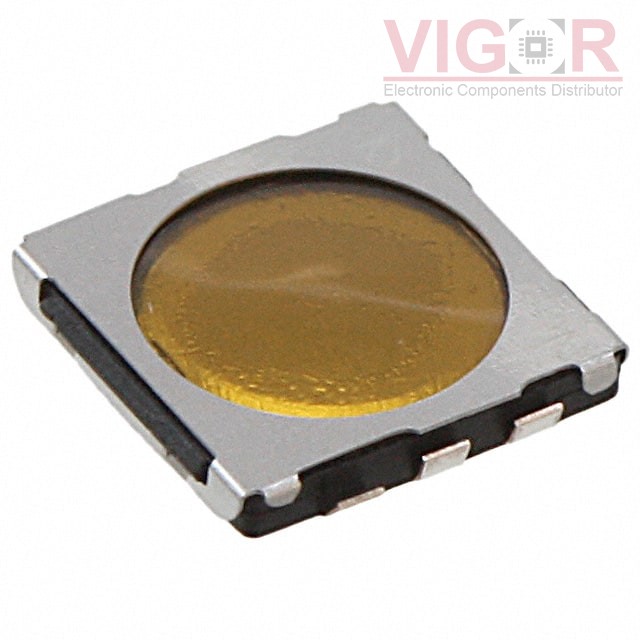

EVP-AHAG6A

Part No :: EVP-AHAG6A

Manufacturer: Panasonic

Description: SWITCH TACTILE SPDT 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVP-AHAG6A PDF

Availability: 7236 pieces

Current price of EVP-AHAG6A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EVP-AHAG6A Specifications

Type	Description
Series:	EVPAH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO x 2
Switch Function:	Off-Mom-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Flush
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	0.59mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	J Lead
Outline:	4.10mm x 4.00mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	80/160gf
Ingress Protection:	-
Features:	Grounding Pin
Operating Temperature:	-20°C ~ 70°C
