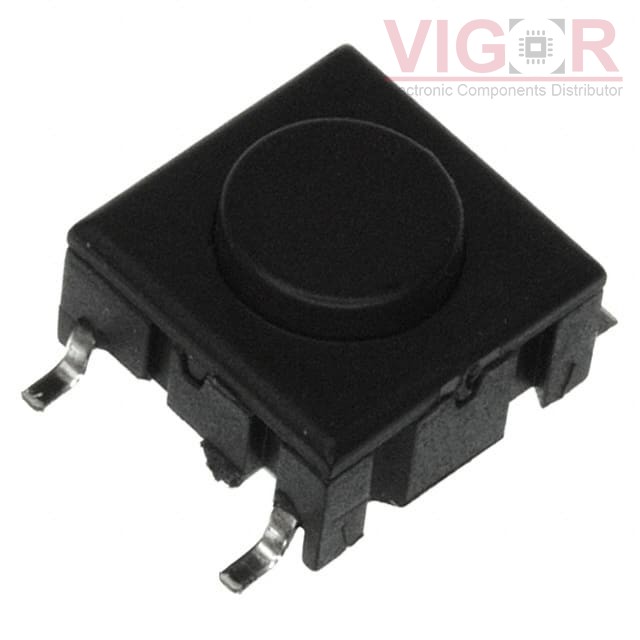

3CSH9R

Part No :: 3CSH9R

Manufacturer: MEC switches

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

DataSheet: 3CSH9R PDF

Availability: 19323 pieces

Current price of 3CSH9R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3CSH9R Specifications

Type	Description
Series:	Multimec® 3
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Standard
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	6.40mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	Gull Wing
Outline:	10.10mm x 10.10mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	300gf
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Sealed - Flux Protection
Operating Temperature:	-40°C ~ 160°C
