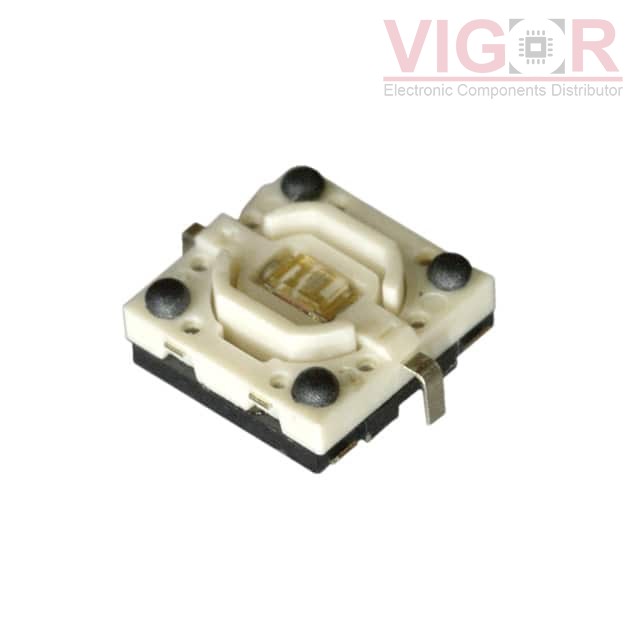

TL3215AF160BQ

Part No :: TL3215AF160BQ

Manufacturer: E-Switch

Description: SWITCH TACTILE SPST-NO 0.05A 12V

Catalog: Tactile Switches

DataSheet: TL3215AF160BQ PDF

Availability: 0 pieces

Current price of TL3215AF160BQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TL3215AF160BQ Specifications

Type	Description
Series:	TL3215
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Plunger for Cap
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	2.00mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	SMD (SMT) Tab
Outline:	4.90mm x 4.90mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Blue
Illumination Voltage (Nominal):	3 VDC
Operating Force:	160gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-40°C ~ 85°C
