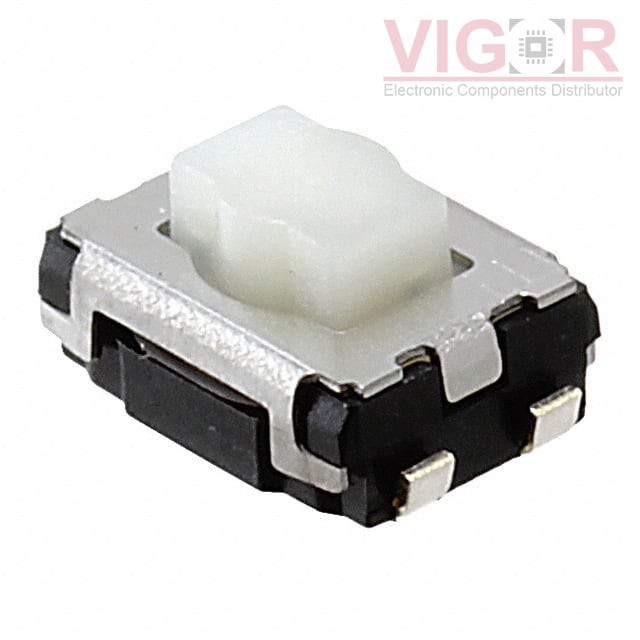

EVQ-P9H02W

Part No :: EVQ-P9H02W

Manufacturer: Panasonic

VIGOR # :: 2710036

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVQ-P9H02W PDF

Country of origin: -

Date code: -

EVQ-P9H02W Specifications

Type	Description
Series:	EVQP9
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Rectangular Button
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	2.50mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	J Lead
Outline:	4.70mm x 3.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	500gf
Ingress Protection:	-
Features:	Grounding Pin
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3998

Shipped from

HK warehouse

Expected Shipping Date

Apr 13 - Apr 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.8200~~	~~$0.82~~
4000	~~$0.4395~~	~~$1 757.96~~
8000	~~$0.4092~~	~~$3 273.44~~

Current price of EVQ-P9H02W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

436353045816

SWITCH TACTILE SPST-NO 0.05A 12V

431153008826

SWITCH TACTILE SPST-NO 0.02A 15V

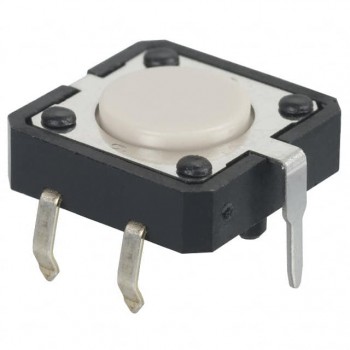

B3F-4100
