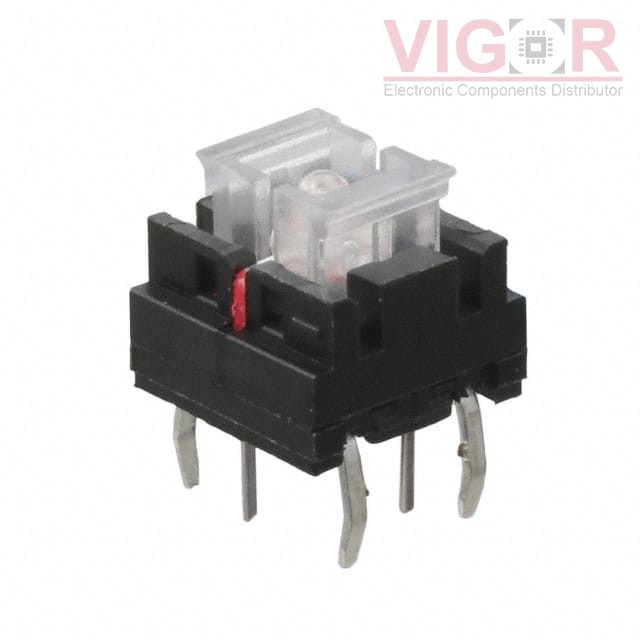

TL6275BA2PQUR

Part No :: TL6275BA2PQUR

Manufacturer: E-Switch

Description: ILLUMINATED THRU HOLE TACT

Catalog: Tactile Switches

DataSheet: TL6275BA2PQUR PDF

Availability: 796 pieces

Current price of TL6275BA2PQUR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TL6275BA2PQUR Specifications

Type	Description
Series:	TL6275
Package:	Tube
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Round Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	16.20mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	8.00mm x 8.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	-
Operating Force:	350gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-25°C ~ 70°C
