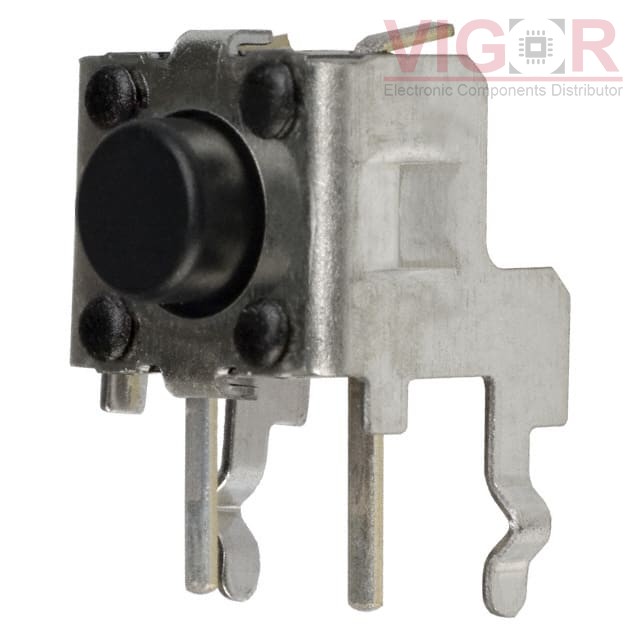

B3F-3120

Part No :: B3F-3120

Manufacturer: Omron Electronics Components

VIGOR # :: 2710730

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

DataSheet: B3F-3120 PDF

Current price of B3F-3120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B3F-3120 Specifications

Type	Description
Series:	B3F
Package:	Bulk
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Standard
Mounting Type:	Through Hole, Right Angle
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	3.85mm
Actuator Orientation:	Side Actuated
Termination Style:	PC Pin
Outline:	7.30mm x 6.25mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	100gf
Ingress Protection:	-
Features:	Grounding Pin
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 7579

Shipped from

HK warehouse

Expected Shipping Date

Dec 21 - Dec 25 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$0.45000	$0.45
10	$0.43244	$4.3244
25	$0.42454	$10.6135
50	$0.40829	$20.4145
100	$0.35232	$35.232
250	$0.32027	$80.0675
500	$0.30424	$152.12
1000	$0.24019	$240.19
5000	$0.22418	$1120.9

Hot Products

EVQ-PE504K

SWITCH TACTILE SPST-NO 0.05A 12V

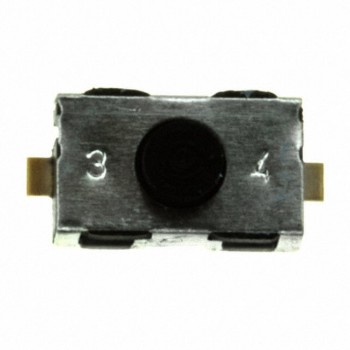

KSR234G LFG

SWITCH TACTILE SPST-NO 0.01A 32V

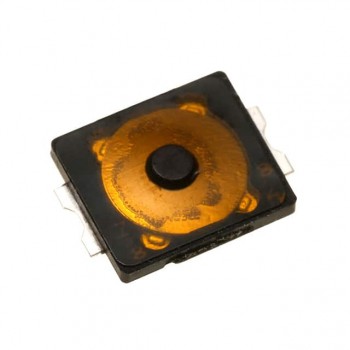

EVP-BABA3A
