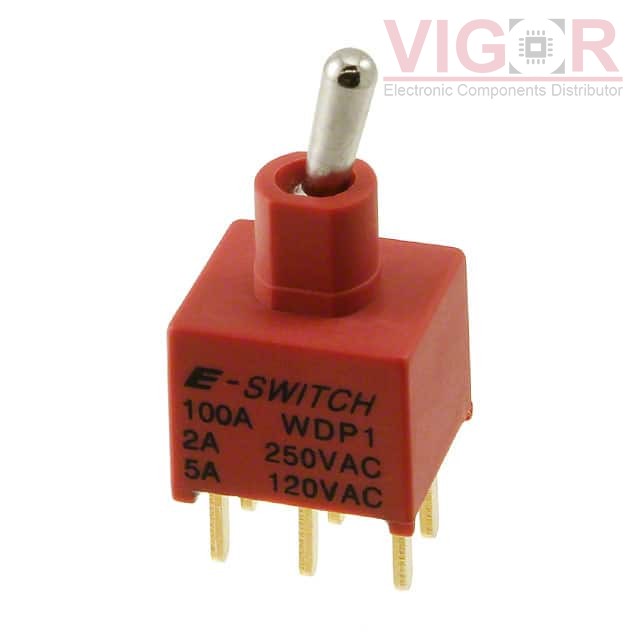

100AWDP1T2B4M2QE

Image is for reference,
please contact us to get the real picture

Part No :: 100AWDP1T2B4M2QE

Manufacturer: E-Switch

Description: SWITCH TOGGLE DPDT 5A 120V

Catalog: Toggle Switches

Shipped from: HK warehouse

Expected Shipping Date: Sep 30 - Oct 04 2025

DataSheet: 100AWDP1T2B4M2QE PDF

Availability: 3104 pieces

Unit Price: ~~$3.41000~~

Current price of 100AWDP1T2B4M2QE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

100AWDP1T2B4M2QE Specifications

Type	Description
Series:	100A
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	5A (AC/DC)
Voltage Rating - AC:	120 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	7.62mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	PC Pin
Panel Cutout Dimensions:	-
Bushing Thread:	Unthreaded
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
